MAG-GAGE - Sight Flow Indicator

C-FLO 360

Magnetic Site Flow

Principle of Operation
The C-FLO 360 is constructed of non-magnetic material, available with flanged, threaded or buttweld process connections. A turbine with magnetic assembly is located inside the flow chamber. The 360-degree rotating indicator contains its own magnetic assembly, which interlocks with the turbine through the flow chamber. As the turbine spins with the flow, the indicator will spin via magnetic attraction.

Features and General Specifications

  • Liquid or gas
  • Maintenance free
  • ANSI/ASME rated
  • Precision bearings
  • Choice of materials
  • Mounts at any angle
  • Patent #6,526907 B1
  • Other patents pending
  • 360 degree visibility
  • Flow rate 10 GRM and above
  • No need for wipers or flappers
  • Can be seen from 200 feet plus
  • Minimum Temperature -100F
  • Maximum Temperature +850F
  • Minimum Pressure Full Vacuum
  • Maximum Pressure 5000psig
  • Less than 1 psig pressure drop
  • No process in contact with glass
  • Replaces conventional glass sight flows
  • Safer for personnel and the environment
  • 3/4" to 12" Flanged, Threaded or Buttweld
  • Performs in extreme pressures and temperatures

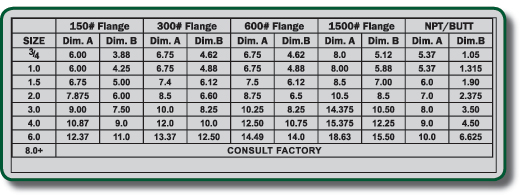

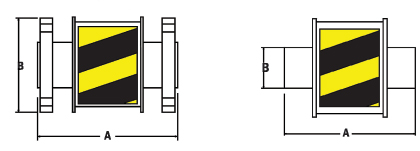

  • Dimensions

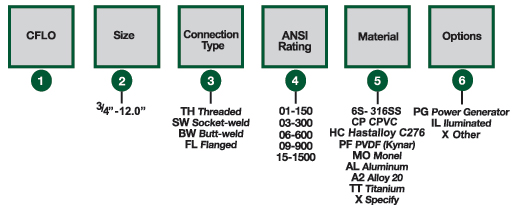

How to construct a C-FLO 360
