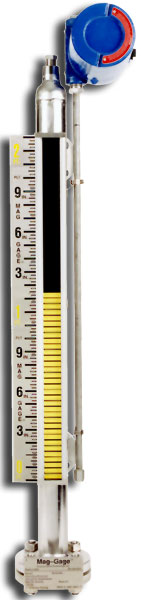

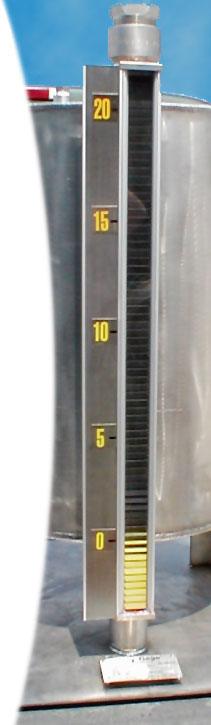

MAG-GAGE - Transmitters


The MT2523 is a non-invasive transmitter. It contains two components, the level sensor and the level transmitter.

The Level Sensor is a network of Reed Switches and resistors contained in a heavy wall stainless steel pipe. The level sensor is mounted parallel with the gauge chamber. As the gauge float rises or falls, it is closing Reed Switches, therefore, changing the resistance proportionally to the liquid level.

The Level Transmitter takes the change in resistance from the level sensor, conditions it and transmits a 4-20 ma 2 wire signal. The level transmitter is field rangeable to provide a full scale output over any portion of the span.

Specifications

Sensor
  • Max Length: Up to 25 Feet
  • Resolution: .50" Standard or .25" Optional
  • Housing: Stainless Steel
  • Max Temp: 500°F
Transmitter
  • Output: 4-20mA (2 Wire)
  • Power: 24 VDC Nominal
  • 11 VDC - 30 VDC
  • Housing: Class 1 Division 1
  • Groups B, C, D
  • Min Temp: -40°F
  • Max Temp: 200°F
Call 281.332.6241 for additional options.
